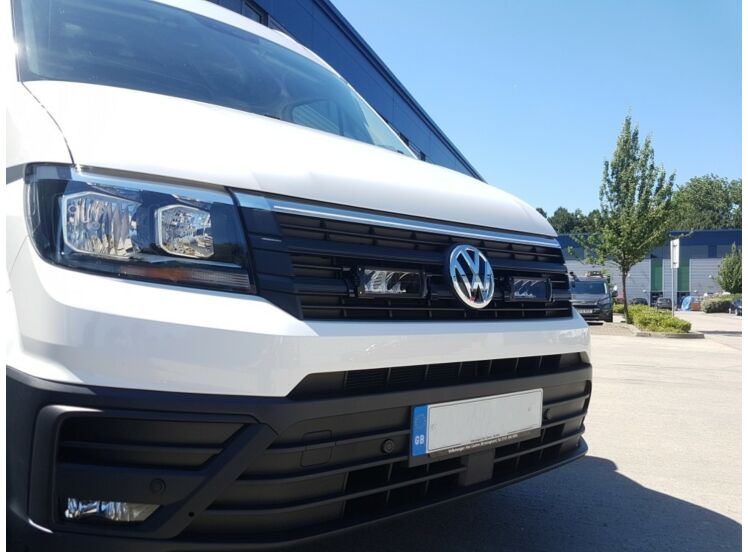

Volkswagen Crafter (vanaf 2017) Grille Kit

- Bespoke vehicle integration kit for Lazer LED Spotlight installation
- Custom fit for VW Crafter (2017+)
- Designed for use with Triple-R 750 High Performance LED Spotlights
- Kit also includes bespoke mounting brackets and two-lamp wiring kit
- Brackets made from high strength, UV -stable, ASA material
- Fully road-legal
- 5-year warranty
- Made in Britain

Based on standard setup i.e. x2 Triple-R 750 High Performance LED Lamps:
- E-Mark Ref: 27.5 x2
- Voltage Range: 9-32V
- LED Life: 50,000 hours
- Optical Efficiency: 92%
- Weight: 2 kg

HIGH BEAM FUNCTION
- Total Luminous Flux: 8200 Lm
- Number of High Output LEDs: 2 x 4
- Power Consumption: 90 Watts
- Current Draw (at 14.4V): 6.2 Amps

CERTIFICATION
- High Beam: ECE R112

PHOTOMETRIC DATA
- 0.25 lx Line: 1214 metres
- 0.5 lx Line: 858 metres
- 1 lx Line: 607 metres
- 3 lx Line: 350 metres

What's included:
- x2 Triple-R 750 High Performance LED Spotlights
- x1 Mounting Kit (comprising 4x Brackets and fasteners)
- x1 Cutting Guide (comprising 4x Brackets)
- x1 Two-Lamp Wiring Kit
- x1 Installation instructions
